£136.00 ex VAT | £163.20 Inc VAT

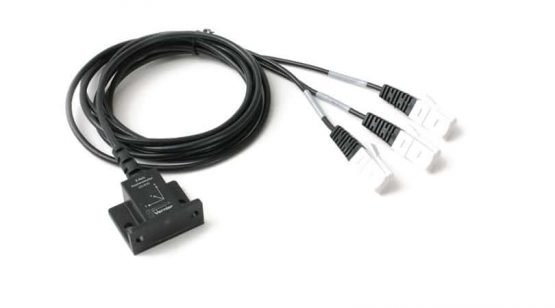

This is basically three Low-g Accelerometers mounted at right angles and all placed in a small box. Can be used for studying the complex motion of an amusement park ride, a bungee jumper, or simply a toss in the air.
Range: -50 to +50 m/s2
Typical accuracy: ±0.1 m/s2
Available to Order
Email to a friendExperiments
Suggested Experiments for the 3-Axis Accelerometer
Student Rocket Launch
Amusement Park Physics
Specification
- Power: 30 mA @ 5 VDC
- Range: ±49 m/s2 (±5 g)
- Accuracy: ±0.5 m/s2 (±0.05 g)
- Frequency Response: 0–100 Hz
- Resolution: 0.037 m/s²
(LabQuest 2, LabQuest, LabQuest Mini, LabPro)
Sensor Requirements
The 3-Axis Accelerometer may require a compatible interface and software. Choose a platform below to see compatible interface and software options.
The 3-Axis Accelerometer is fully supported with LabQuest 2, a standalone data logger with built-in graphing and analysis software.
Learn more about LabQuest 2 »
Software | ||
---|---|---|
Interface | Logger Pro | Logger Lite |
LabQuest Mini | Full support | Full support |
LabQuest 2 | Full support | Full support |
LabQuest Stream | Full support1 | Full support1 |
Go!Link | Future support2 | Future support2 |
Go Wireless® Link | Future support2 3 | Future support2 3 |
Original LabQuest (DISCONTINUED) | Full support | Full support |
LabPro (DISCONTINUED) | Full support | Full support |
COMPATIBILITY NOTES
- Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth®technology
- This interface can only collect acceleration data from one axis.
- A computer with a compatible Bluetooth® 4.0 radio is required. Only computers running Windows 10 or Mac OS X 10.10 or newer are supported.
Interface | Software Graphical Analysis for Chrome |
---|---|
LabQuest Mini | Full support |
LabQuest 2 | Full support |
LabQuest Stream | Full support1 |
Go!Link | Partial support2 |
Original LabQuest (DISCONTINUED) | Full support |
COMPATIBILITY NOTES
- Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth®technology
- This interface can only collect acceleration data from one axis.
Software | ||
---|---|---|
Interface | Graphical Analysis for iOS | Graphical Analysis for Android |
LabQuest Stream | Full support | Full support |
LabQuest 2 | Full support1 | Full support1 |
Go Wireless® Link | Partial support2 | Partial support2 |
COMPATIBILITY NOTES
- Mobile devices can only connect to LabQuest 2 via Wireless Data Sharing.
- This interface can only collect acceleration data from one axis.
