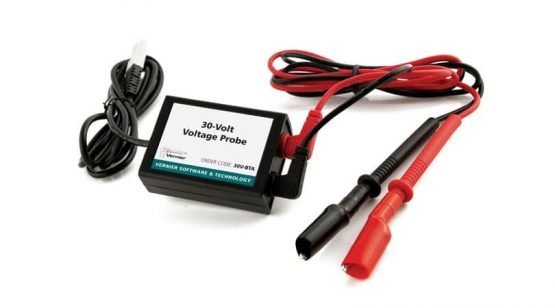

30-Volt Voltage Probe

Return to Previous Page

Product Description

High Current Sensor
High Current Sensor £103.00 ex VAT | £123.60 Inc VAT
Instrumentation Amplifier
Instrumentation Amplifier £103.00 ex VAT | £123.60 Inc VAT

£64.00 ex VAT | £76.80 Inc VAT

This sensor is used to measure voltages in the range of -30 to +30 volts

Available to Order

SKU: VR113560 Category:

Description


Use this sensor in experiments that involve voltages larger than 10 volts, such as when working with large solar panels. Since this voltage probe covers such a wide voltage range, its resolution is lower than our Differential Voltage Probe, which we recommend for most experiments.

The removable leads on the 30-Volt Voltage Probe are heavy duty and have shrouded banana plugs to meet European safety standards.




Specification

  • Input Impedance: 30 kΩ
  • Output voltage range: ±10 V
  • Voltage range: ±30 V
  • Resolution: 15 mV (LabQuest 2, LabQuest, LabQuest Mini, Go!Link, LabPro)

Click here to Download User Guide

Requirements

Choose a platform below to see compatible interface and software options.

LabQuest


InterfaceLabQuest App

LabQuest 3

Full Support

LabQuest 2 (Discontinued)

Full Support
Labquest 1 (discontinued)Full Support

Computers

InterfaceSoftware
Graphical Analysis for Computers
Version 5.4		Logger Pro
Version 3.16		Logger Lite
Verison 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportFull support
LabQuest 2
(Discontinued)		Full supportFull supportFull support
LabQuest StreamFull support1Full supportFull support1
Go!LinkFull supportFull supportFull support
Original LabQuest
(Discontinued)		Full supportFull supportFull support
LabPro
(Discontinued)		IncompatibleFull supportFull support

COMPATIBILITY NOTES
1. Connect LabQuest Stream via USB. Wireless connection is not supported.

Chromebooks

InterfaceSoftware
Graphical Analysis for Chrome Version 5.4
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2 (Discontinued)Full support
LabQuest StreamFull support1 3
Go!LinkFull support
Original LabQuest
(Discontinued)		Full support

COMPATIBILITY NOTES
1. Connect LabQuest Stream via USB. Wireless connection is not supported.

iOS

InterfaceSoftware
Graphical Analysis App for iOS
Version 5.4		Graphical Analysis GW
Verison 4.0.6
LabQuest StreamFull supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (Discontinued)Full support 1Full support 1

COMPATIBILITY NOTES
1.Mobile devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.


Android

InterfaceSoftware
Graphical Analysis App for Android
Version 5.4		Graphical Analysis GW
Verison 3.2
LabQuest StreamFull supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (Discontinued)Full support 1Full support 1

COMPATIBILITY NOTES
1.Mobile devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
